DoorWall Arc 3D Duo™

🡬 SPACE FLEXIBILITY SOLUTIONS

TWO SECTION
BIFOLDING WALL

200 MPH+
WIND EXPOSURE TESTED

ASTM E 331
WATER RESISTANCE PASSED

180 PSF
WIND PRESSURE TESTED

ASCE 7-10
SEISMIC LOAD COMPLIANT

ASTM E 283
AIR INFILTRATION PASSED

TWO-SECTION BIFOLDING WALL

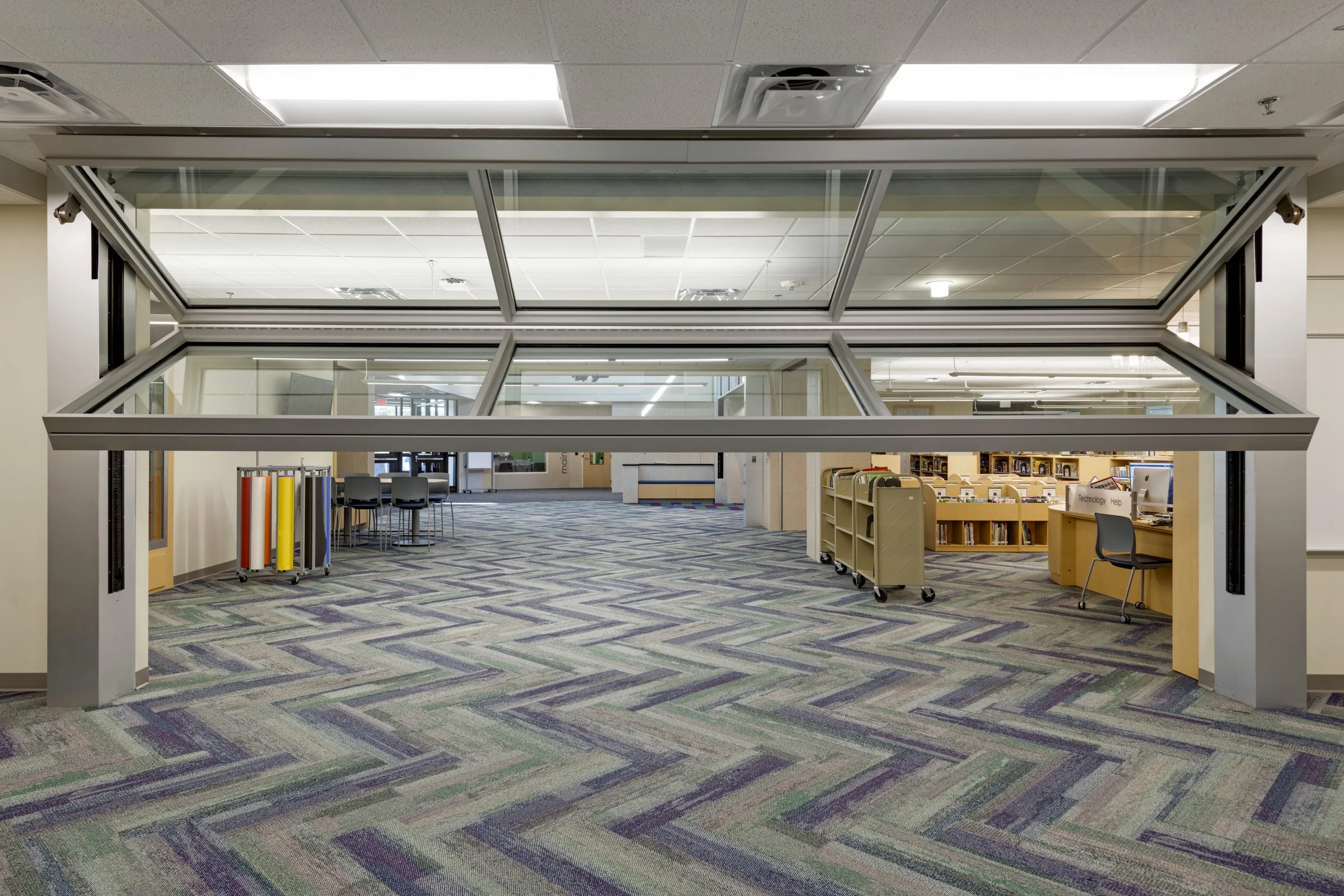

The DoorWall Arc3D™ Duo makes history with its innovative design, components and performance. The Duo minimizes interior and exterior projection concerns by using two vertical lift frame sections, finished with custom cladding of any configuration, including glass, wood, stone and architectural metals.

---

The patented Architectural Direct Drive Door System™, reconciles custom design with energy efficient functionality. The Arc 3D™ is an award winning, space saving innovation that supports contemporary design trends and integrates seamlessly with historic renovation projects. Create welcoming, bright and sophisticated interior or exterior spaces that exceed top safety requirements.

The Arc 3D™ Duo from DoorWall Systems makes history with its innovative vertical lift design, components and performance. Proud of its history and well imagined design, this model minimizes interior and exterior projection by using two frame sections.

• Model Sizes

  • Widths to 18′-0″ (W) x 14′-0″ (H)

  • Larger Sizes Custom Engineered

• Performance

  • Rated for 61 PSF (equivalent to 200 mph wind load)

  • Thermal Rating to U-factors of 0.45

  • Thermally Broken Frame Delivering High Performance Energy Ratings

• Operation

  • 2HP (3-Phase) Direct Drive Helical Gear Motor

  • Arc 3D™ Direct-Drive System

  • Custom Built Control Panel

  • 360 Integrated Design – No Exposed Wires, Springs, Straps or Motors/Belts around the Door Frame

• Finish Options

  • Kynar

  • Clear Anodized

  • Metallic and Textured Color Treatments

  • Customizable Color Formulations

• Cladding Options

  • Glass to 2” thick – Engineered to Meet Performance Targets

  • Wood Cladding

  • Performance Metals

  • Stone / Stucco / Masonry

  • Custom Cladding Material Integration – As Per Project Requirements

• Installation

  • Door Ships Complete with Structural Tubes

  • Simple Installation

  • Drive System Assembled, Installed & Factory Tested

• Safety

  • 3-Part Redundant Fail-Safe Brake System – Proactive Prevention of Section Collapse

  • Constant Contact Auto-Stop Motor Function

  • Integrated Load-Lock Fall Protection

  • UL325 Compliance

This technology is patent pending.
