S7000 Series
FIRE RATEDSMOKE RATEDSIDE ACTINGWITH EGRESS
S7000 Series fire door systems are available in both manual or motor operated designs and with or without swing type egress doors.
S7000 Series doors are side acting therefore ideal for openings in fire walls where headroom is limited. The side activated design enables these fire doors to navigate around tight curves and contoured openings.

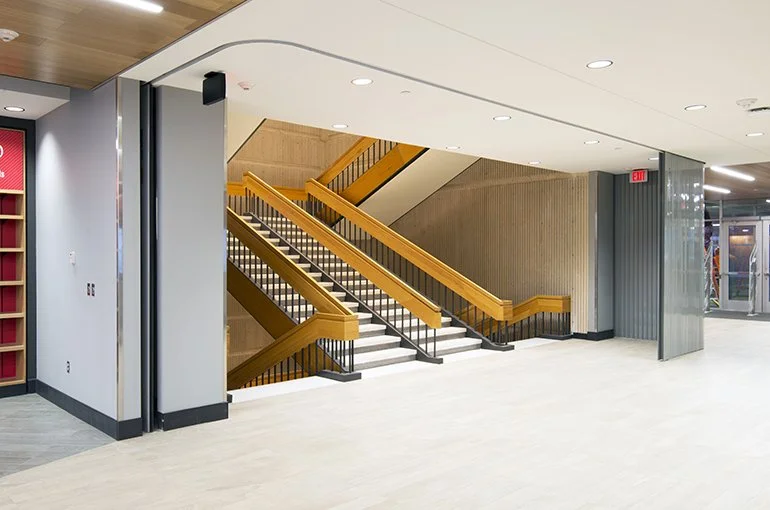

The Safescape® S7400, S7500, S7700,and S7900 Fire Door Systems are ideal for any application where fire protection and emergency egress is needed and conventional swinging doors would not provide an adequate and desirable solution. The S7200 and S7600 are ideal for any application where only fire protection is required and egress is not an issue. Ideal applications are: cross-corridor situations in schools or hospitals and area separations. The S7000 Series Fire Door Systems have become increasingly designed into casinos, museums and retail areas.
-
3-hour rated UL 10B*
Available with a temperature rise rating of 650°F over 30 minutes when required, single parting only
Smoke & Draft labeled UL 1784
*Listed under the Canadian equivalent CAN/ULC S104
-
-
Available with multiple fixed complying swinging egress doors when required
-
Auto-Set® automatic resetting
Fail-Safe Design – automatic self-closing mechanism does not require power operation to self-close
Manual operation for assemblies up to 10’x10′
-
Widths to 80′ (160′ bi-parting), heights to 24′; for larger sizes and custom configurations consult the factory
Negotiates radius curves: 3′-0″ with egress doors; 1′-6″ without egress doors
-
McKEON Sterling Gray
Powder coat of any color as selected
Stainless Steel — No. 4 Polish or No. 8 Mirror
This technology is the subject of US Patent Nos. 8,307,877 and 9,267,326.
