SF50 HSW — Non-Insulated Aluminum Horizontal Sliding Wall System
All glass horizontal sliding wall systems are designed for application with a low thermal performance profile.

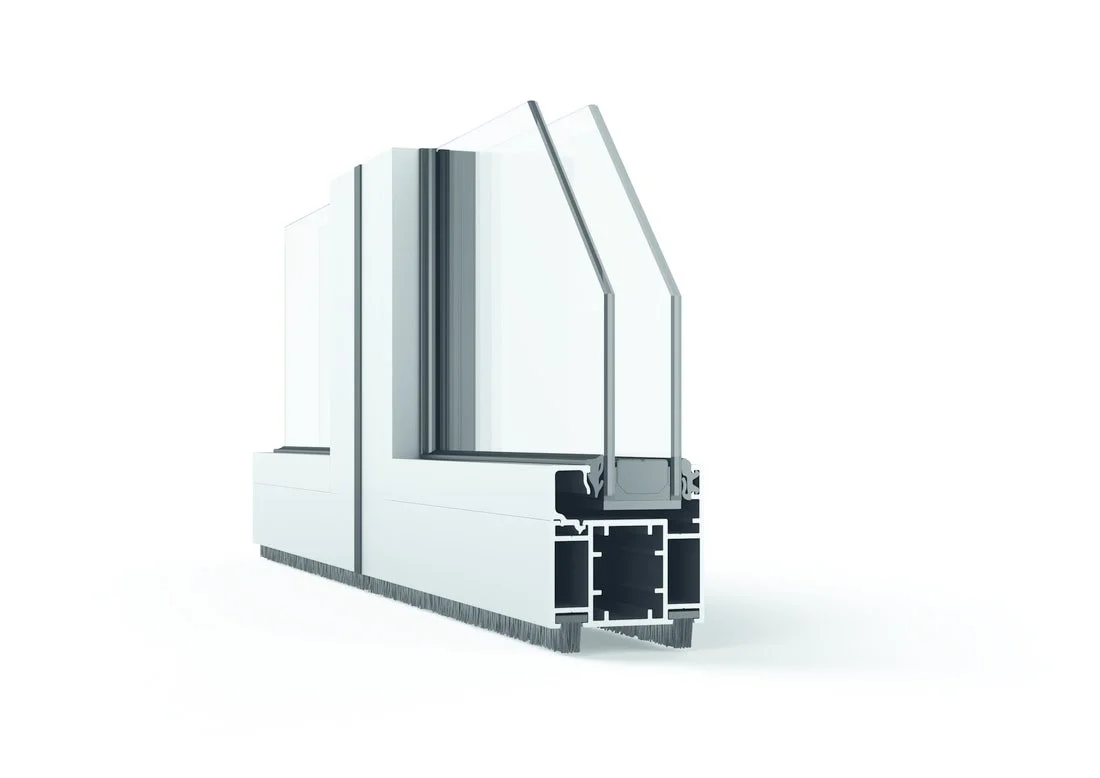

Horizontal sliding wall made of non insulated aluminum profiles
The system is internally glazed as standard and can accommodate
glazing thickness of 1/4“ (6 mm) to 1 1/2“ (38 mm)
Sound transmission control STC 30 (based on single pane glass)
SF 50c H-S-W with solid wood cladding interior optionally available
-
Patio Doors
Store Fronts
Interior-Exterior Divider for many Commercial Applications
Interior-Exterior Divider for many Residential Applications
Interior Space Management Applications
etc.
-
The inner and outer rubber gaskets close tightly against the tracks and leave the noises and the weather outside. Additional safety and operational features generate peace of mind.
-
Our standard painting procedures are powder coating and anodization.
Both procedures allow a large variety of colors or effects to be achieved.
Anodized finishes can get pre-treatments like polishing or brushing the extrusions to achieve the perfect look.
Powder coatings can be flat, glossy, smooth, textured and pre-treated for marine environments.
Wood grain effects are also available for the aluminum extrusions.
FULL Standard RAL or NCS color ranges are available, beside of custom mixtures and color to match a sample provided. -
Basic Size Limitations:
System Panel Width: Max. 51" (1300 mm)
System Height: Max. 12´ (3600 mm)
Panel Weight: 264 lbs/panel (120 kg/panel)Available Options:
TThe options list is almost endless, since we can upgrade our products to almost all customer needs.
Just to name a few options:
- Integrated Doors at any location
- Emergency Exit door hardware
- Locksets as needed
- Door closers
- Custom handle solutions
- Thousands of Glass types available
- Different Track Types (recessed top track, ADA flush sill)
- Matching mid-rails & muntin's
